Product Details
＋

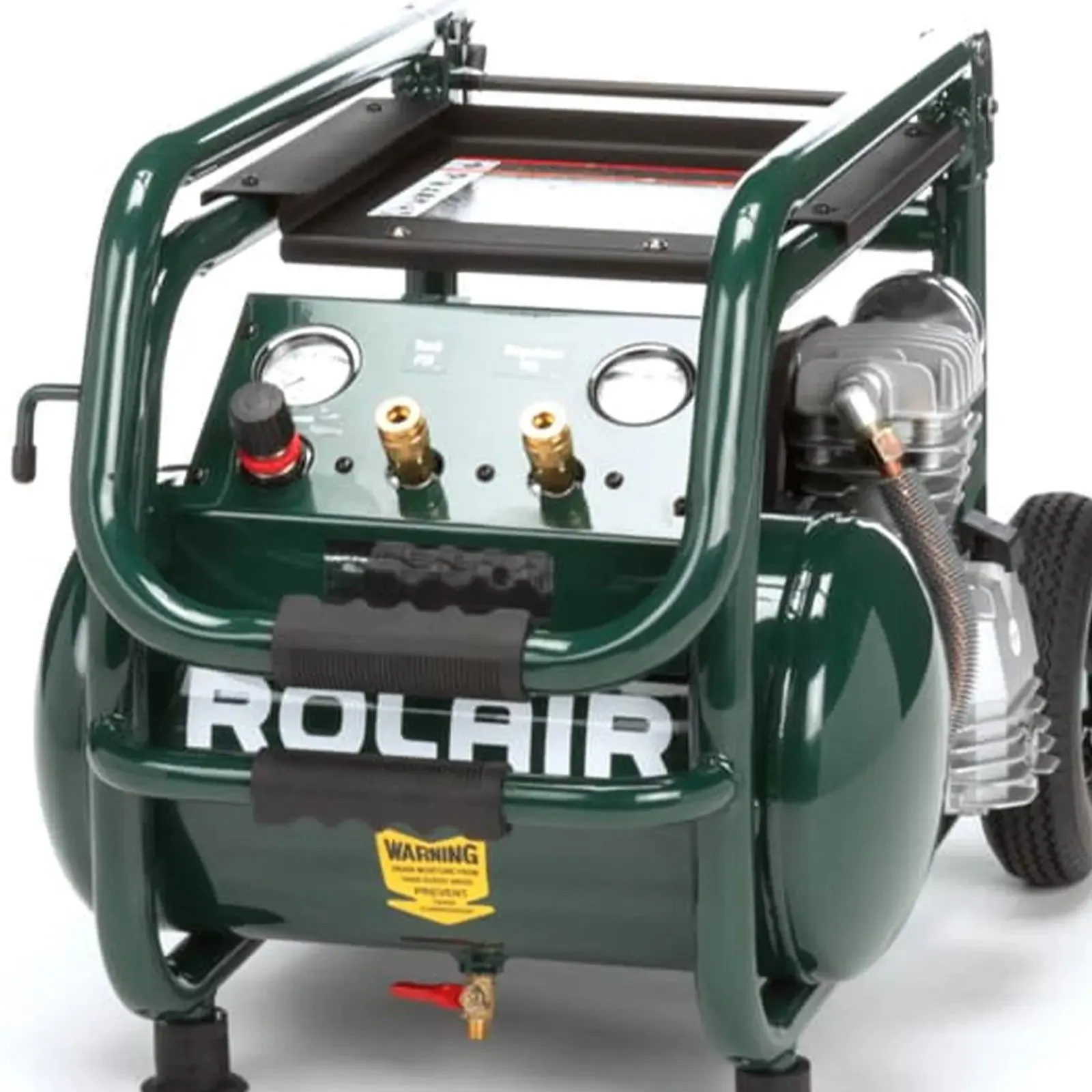

The VT25BIG boasts the highest air output of any direct drive air compressor in our line-up. The continuous-duty motor-pump delivers a whopping 6.5 CFM @ 90 PSI. The foot-actuated folding handle and heavy-duty flat-free tires make it easy to move the VT25BIG around the job site.
ABOUT THE PUMP
ROLAIR Quality, Single Stage, Ball Bearings, Cast-Iron Cylinder, Stainless-Steel Reed Valves and Splash Lubrication Ensure Longer Life.
ABOUT THE MOTOR
2.5 HP, 3400 RPM, S1-Rated for Continuous Duty, Low-Amp Draw, Overload Protection with Manual Reset, 115 Volt, 60 Hz, Heavy-Duty/Industrial Grade with Ball Bearings for Greater Durability.
STANDARD EQUIPMENT
- 100% Duty-Cycle Motor
- Heavy Duty Wheels for Greater Jobsite Mobility
- Start/Stop Pressure Switch with On/Off Lever
- Fold-Down Handle for Easy Storage/Low Profile
- User-Friendly Control Panel Including Gauges and 2 Quick-Disconnects,
- Safety Relief Valve
- Intake Filter with Silencer
- 13.8 Amp Motor
- Initial 10 oz. Oil Fill Included
| HORSE POWER | 2.5 HP |
| CFM DISPLACED | 9.3 CFM |
| CFM DELIVERED | 6.5 CFM @ 90 PSI |
| PUMP/MOTOR RPM | 3400 RPM |
| OVERLOAD PROTECTION | Yes (Automatic) |
| LUBRICATION TYPE | Splash Lubrication |
| PUMP OIL CAPACITY | 10 oz. |
| REED VALVE SYSTEM | Yes (Standard) |
| NUMBER OF CYLINDERS | 1 |
| TANK CAPACITY | 5.3 Gallons |
| L X W X H | 31" x 20" x 43" |
| DECIBEL RATING | 86 dBA |
| COUNTRY OF ORIGIN | |
| SHIPPING WEIGHT | 108 lb. |
