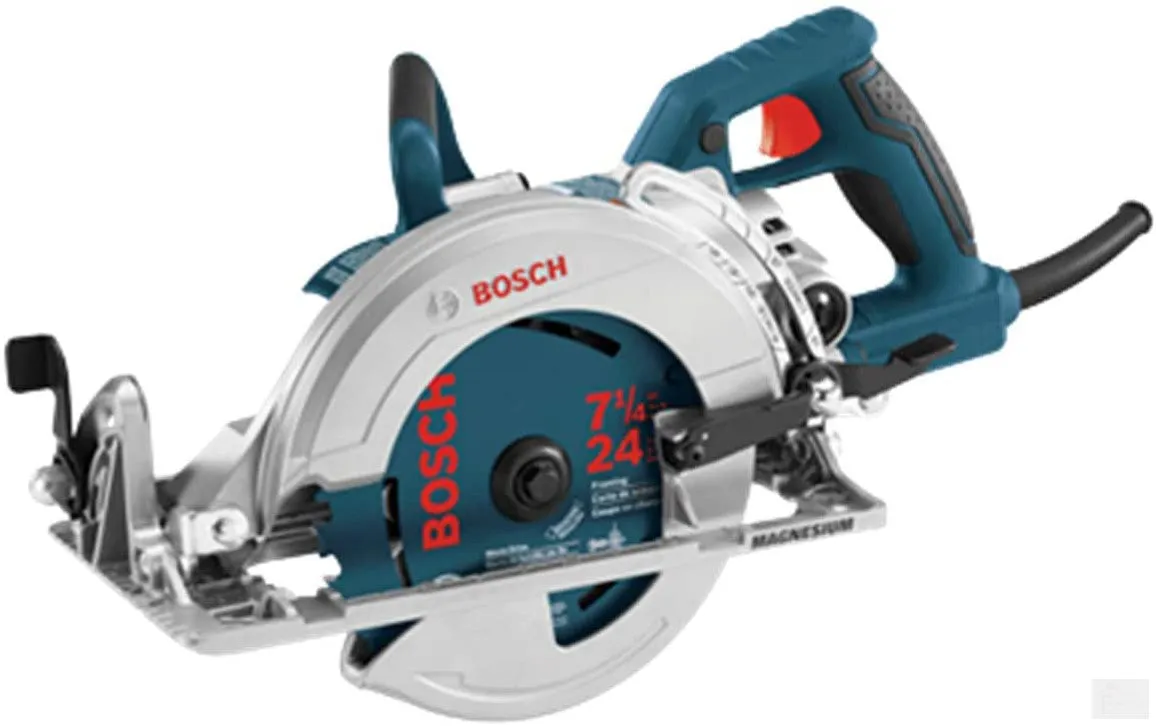

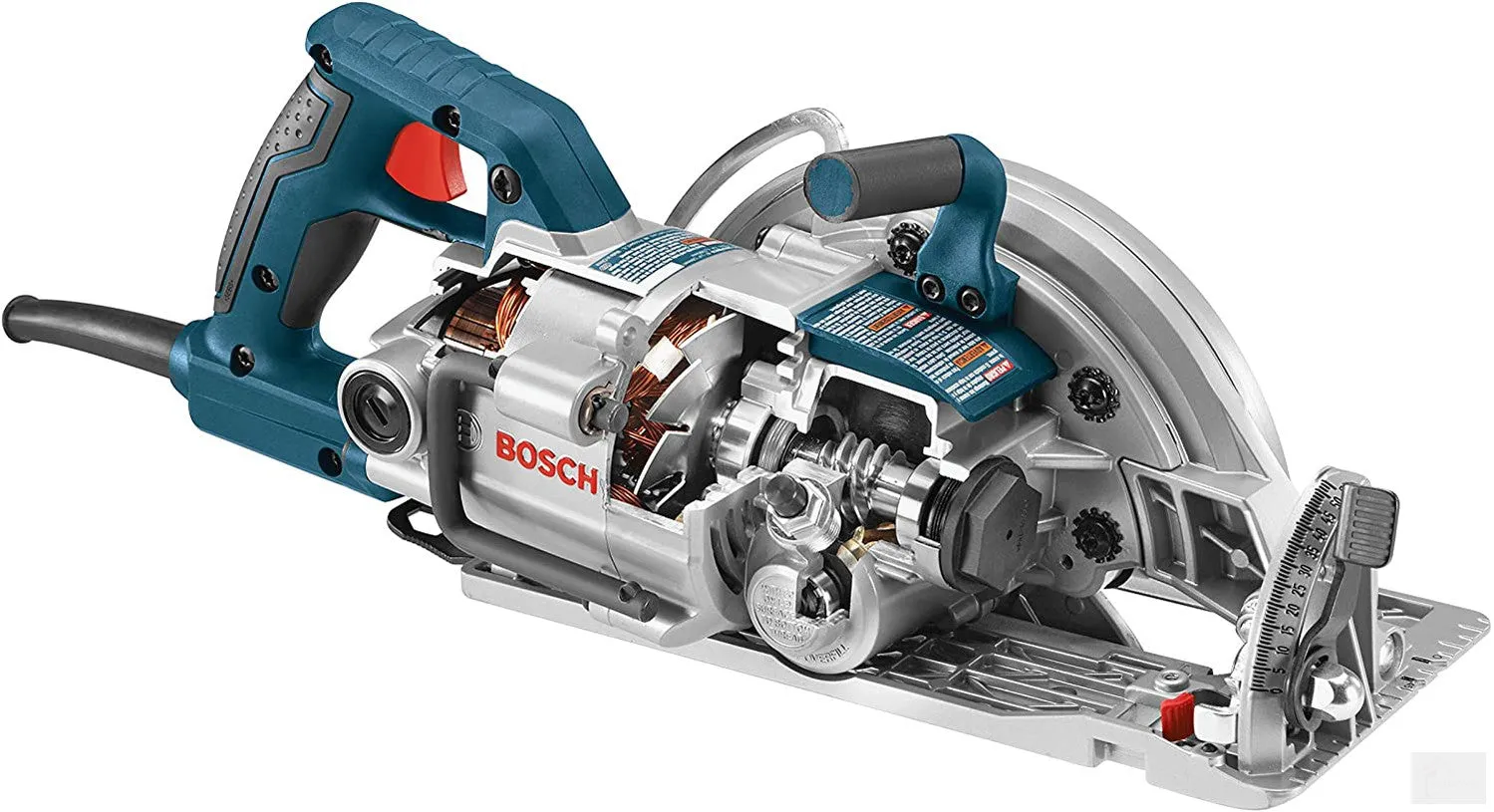

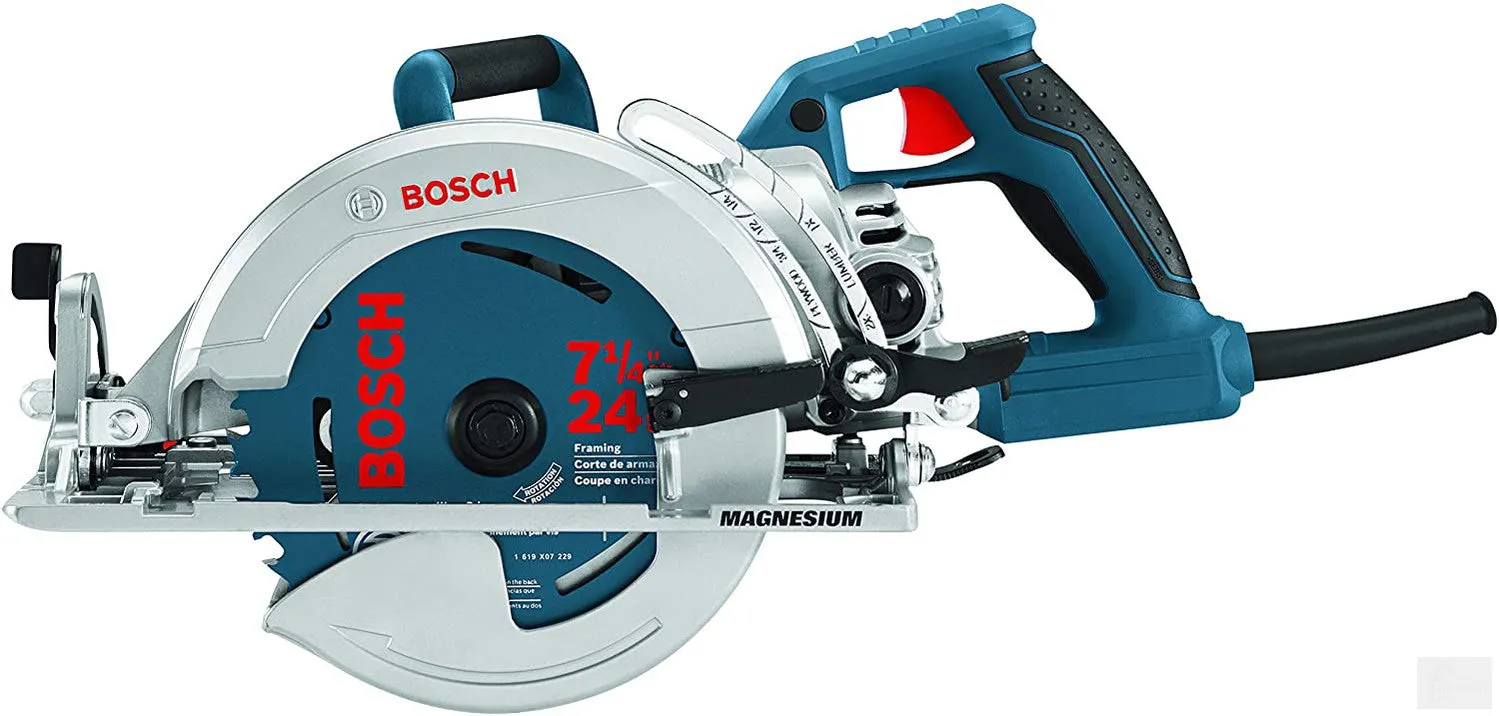

The worm drive system on the CSW41 features an enormous gearing ratio in a compact size. So if you want tremendous power in a manageable package, this is the saw you need. This model features sturdy magnesium housing and a die-cast magnesium footplate for true strength and a lifetime of reliable use. It also has easily serviceable brushes, large adjustment levers, a spindle lock, and a built In. saw hook for easy storage between tasks. Top it all off with a soft grip handle for comfort, control, and accuracy, and you've got one exceptional piece of equipment.
INCLUDES
- (1) CSW41 7-1/4 In. Blade Left Worm Drive Saw
- (1) Multi-Function Blade Wrench
- (1) Carbide Blade
- (1) Built in Saw Hook
SPECIFICATIONS
ATTRIBUTES | |
Amperage | 15.0 |
Arbor Size | Diamond |
Bevel | 53° |
Blade Diameter (in) | 7.25 |
Blade Size | 7-1/4" |
Case Type | No Case Included |
Depth of Cut | 2-3/8" |
Dust Blower | No |
Dust Collection | No |
Electric Motor Brake | No |
Height | 9.0" |
Length | 20.75" |
Max. Bevel Capacity (°) | 53.0 |
Max. Depth of Cut at 45 Deg. | 1-15/16" |
Max. Depth of Cut at 50 Deg. | 1-13/16" |
Max. Depth of Cut at 90 Deg. | 2-3/8" |
No Load RPM | 5,300 |
Rating | 120 V |
Voltage | 120V |
Weight | 12.3lb |
BENEFITS
Light weight magnesium motor housing and foot plate construction – lighter weight saw reduces user fatigue for less down time

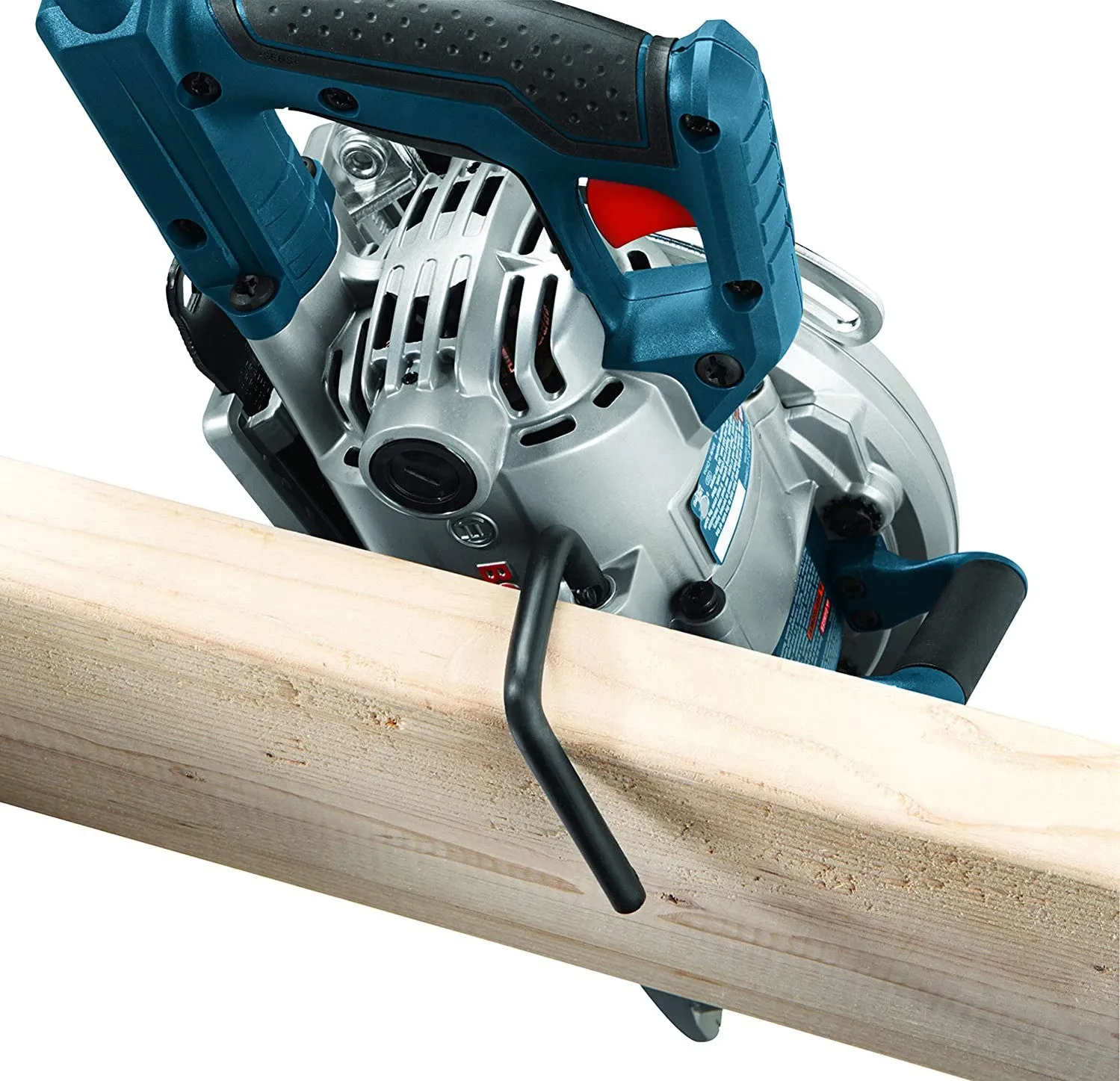

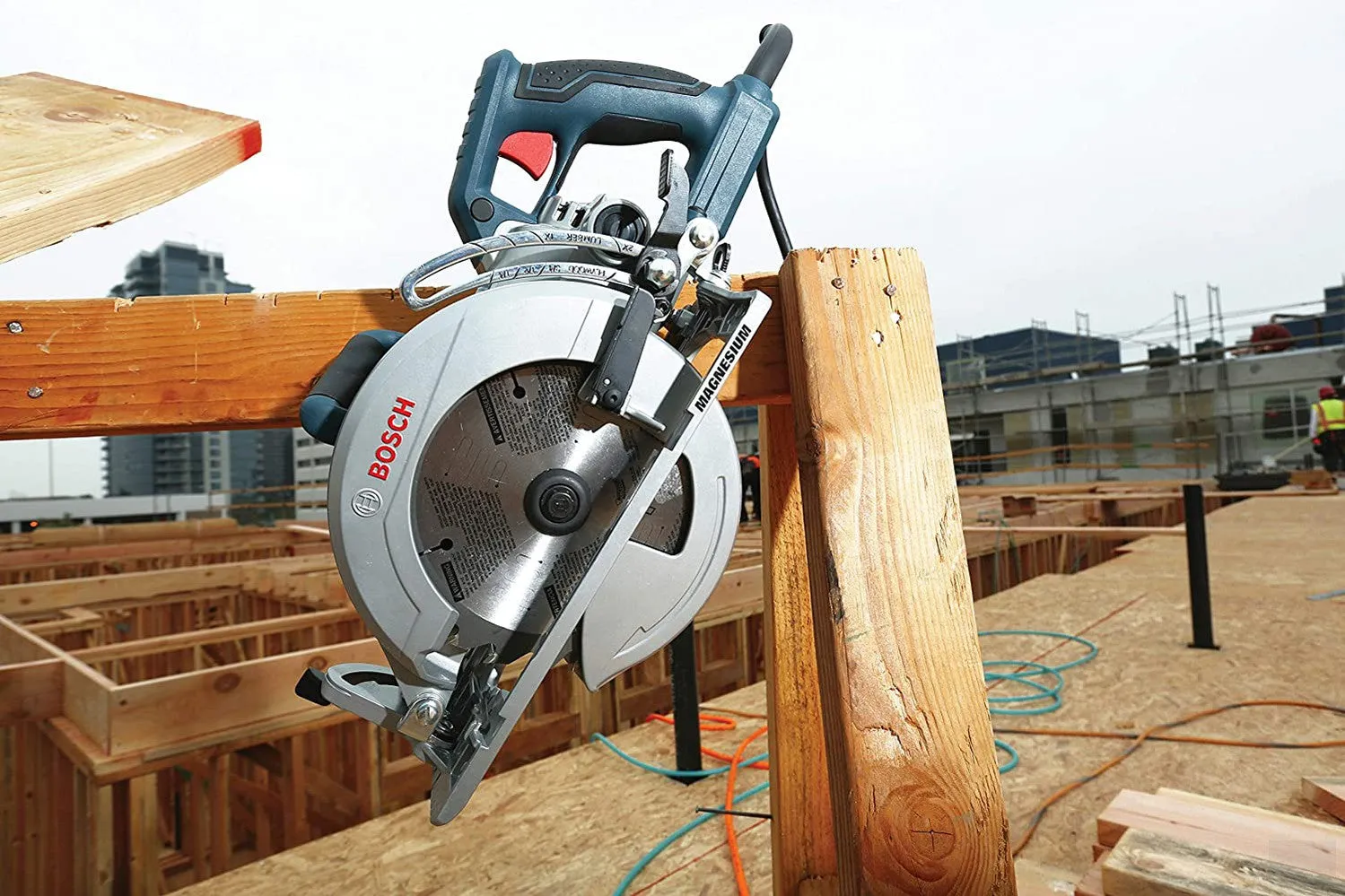

Built-in saw hook – allows convenient saw storage between cuts
Featherboard multi-function wrench – for blade and brush change, lever adjustments and blade diamond center knockout
Accurate depth of cut system allows for quick accurate adjustment
Left side blade design for unmatched clarity of cut line
Anti-snag lower guard - provides smooth operation for small cut-off pieces
Soft-grip handles for comfort and control
53˚ bevel capacity with positive detent stop at 45˚
Large adjustment levers for fast, accurate bevel and depth adjustments
Easy access spindle lock for easy blade changes
Powerful 15 amp motor provides power for a variety of cutting applications
